EBS database migration leveraging Active Dataguard

Build dataguard Standby instance from Primary database
Primary
SQL> SELECT log_mode FROM v$database;
LOG_MODE
------------
ARCHIVELOG
 Create standby redo logs on the primary database (in case of  switchovers). The standby redo logs should be at least as big as the  largest online redo log and there should be one extra group per thread  compared the online redo logs.
ALTER DATABASE FORCE LOGGING
*
ERROR at line 1:
ORA-12920: database is already in force logging mode
SQL> ALTER SYSTEM SWITCH LOGFILE;

 Create standby redo logs on the primary database (in case of  switchovers). The standby redo logs should be at least as big as the  largest online redo log and there should be one extra group per thread  compared the online redo logs.
ALTER DATABASE ADD STANDBY LOGFILE ('/u04/apptest/testdata/standby_redo01.log') SIZE 50M ;
 ALTER DATABASE ADD STANDBY LOGFILE ('/u04/apptest/testdata/standby_redo02.log') SIZE 50M ;
 ALTER DATABASE ADD STANDBY LOGFILE ('/u04/apptest/testdata/standby_redo03.log') SIZE 50M ;
 ALTER DATABASE ADD STANDBY LOGFILE ('/u04/apptest/testdata/standby_redo04.log') SIZE 50M ;
alter system set log_archive_config='DG_CONFIG=(TESTDG,TEST)' scope=both;


Oracle Database Appliance Setup

create database home

odacli create-dbhome -v <version number 12.1.0.2.180116>

create “shell” database

odacli create-database -n TESTCOLA -cl OLTP -s odb16 -dh 026d2dbc-ff64-4da4-873e-2c44840ac732 -y RACONE -r ACFS -m

Note! Creating RacOne node database on ACFS file system

Create some directories for multiplexing control files

mkdir -p /u02/app/oracle/oradata/TESTCOLA/controlfile
mkdir -p /u03/app/oracle/fast_recovery_area/TESTCOLA/controlfile/
mkdir -p /u04/app/oracle/redo/TESTCOLA/controlfile/

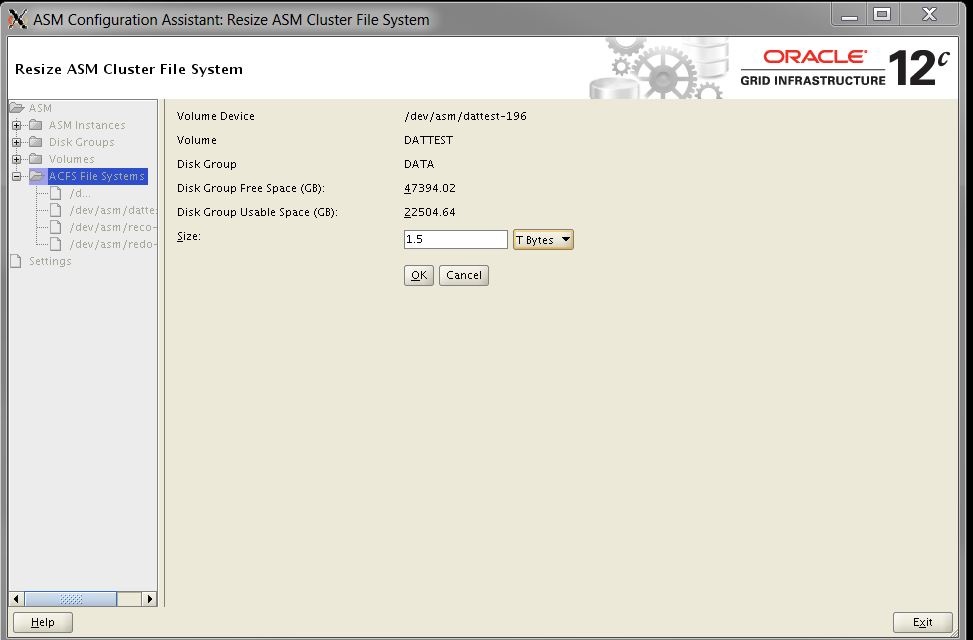

Optional: Resize ACFS file systems where datafiles will reside

Create TNS_ADMIN directory

mkdir -p /u01/app/oracle/product/12.1.0.2/dbhome_24/network/admin/TESTCOLA_1_zsc-oda0-0
export TNS_ADMIN=/u01/app/oracle/product/12.1.0.2/dbhome_24/network/admin/TESTCOLA_1_zsc-oda0-0

Source Database (Primary)

Primary’s tnsnames.ora or ifile contains the following entries

TEST = (DESCRIPTION=
(ADDRESS=(PROTOCOL=tcp)(HOST=primary-host)(PORT=1531))
(CONNECT_DATA=(SID=TEST))
)

TESTCOLA = (DESCRIPTION=
(ADDRESS=(PROTOCOL=tcp)(HOST=standby-host)(PORT=1531))
(CONNECT_DATA=(SID=TESTCOLA))
)

Primary’s listener.ora

TEST =
(DESCRIPTION_LIST =
(DESCRIPTION =
(GLOBAL_DBNAME = TEST_DGMGRL.FQDN)
(ADDRESS = (PROTOCOL = TCP)(HOST = primary-host)(PORT = 1531))
)
)

SID_LIST_TEST =
(SID_LIST =
(SID_DESC =
(ORACLE_HOME= /u01/apptest/oracle/testdb/12.1.0.2)
(SID_NAME = TEST)
)
)

lsnrctl reload TEST (Primary)

Target Database (Standby)

Standby’s tnsnames.ora or ifile contains the following entries

TEST = (DESCRIPTION=
(ADDRESS=(PROTOCOL=tcp)(HOST=primary-host)(PORT=1531))
(CONNECT_DATA=(SID=TEST))
)

TESTCOLA = (DESCRIPTION=
(ADDRESS=(PROTOCOL=tcp)(HOST=standby-host)(PORT=1531))
(CONNECT_DATA=(SID=TESTCOLA))
)

Standby’s listener.ora

SID_LIST_TESTCOLA =
(SID_LIST =
(SID_DESC =
(GLOBAL_DBNAME = TESTCOLA_DGMGRL.FQDN)
(ORACLE_HOME = /u01/app/oracle/product/12.1.0.2/dbhome_24)
(SID_NAME = TESTCOLA)
)
)

TESTCOLA =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = standby-host)(PORT = 1531))
)

ensure you can tnsping source database (TEST single instance) from target (TESTCOLA)

ensure you can tnsping target database (TESTCOLA single instance) from source (TEST)

scp password files from Primary to Standby

Since we use odacli to create TESTCOLA, remove the existing “useless” datafiles from

/u02/app/oracle/oradata/TESTCOLA/TESTCOLA/datafile/
/u03/app/oracle/fast_recovery_area/TESTCOLA/archivelog
/u04/app/oracle/redo/TESTCOLA/onlinelog

Mesh the init parameters from Primary and odacli created Standby, then create spfile from the “mesh” version of pfile with parameter (STANDBY database)
*.cluster_database=FALSE

. oraenv TESTCOLA

export ORACLE_SID=TESTCOLA (built the Standby as single instance)

startup nomount

rman auxiliary sys/<standby password>@TESTCOLA target sys/<primary password>@TEST

SPOOL LOG TO ‘/tmp/rman_test_dupe.log’

run
{
duplicate target database for standby from active database dorecover nofilenamecheck;
}

NOTE!I’m doing duplicate target database from active database during non-peak hours

once RMAN session is completed, shutdown Standby,

startup nomount
alter database mount standby database;

Both Primary and Standby

ALTER SYSTEM SET dg_broker_start=true scope=both;

Primaryd

dgmgrl sys/think1st@TEST
create configuration ‘TEST’ as primary database is ‘TEST’ connect identifier is ‘TEST’;
add database ‘TESTCOLA’ as connect identifier is ‘TESTCOLA’ maintained as physical;
ENABLE CONFIGURATION;
show configuration;

Configuration – TESTCOLA
Protection Mode: MaxPerformance
Members:
TEST – Primary database
TESTCOLA – Physical standby database
Fast-Start Failover: DISABLED
Configuration Status:
SUCCESS (status updated 11 seconds ago)

show parameter log_archive (log_archive_dest_2 should be using service “TESTCOLA” and log_archive_dest_2_state=’enable’

set linesize 150
select inst_id,status,error from gv$archive_dest where dest_id=2;

If everything is configured correctly above query should return “VALID” and you should start seeing archivelogs landing in Standby’s archive area. /u03/app/oracle/fast_recovery_area/TEST/archivelog/<DATE>

---

select process,status,sequence# from v$managed_standby;  (Both PRIMARY and STANDBY)

Primary LNS process and Standby MRP0 should have the same SEQUENCE#.

ALTER DATABASE RECOVER MANAGED STANDBY DATABASE CANCEL; (CANCEL current recovery)
ALTER DATABASE RECOVER MANAGED STANDBY DATABASE DISCONNECT FROM SESSION; (Terminate all active user sessions on the standby database and restart log apply services)
ALTER DATABASE OPEN READ ONLY;

PRE-SWITCHOVER-STEP

Verify that there are no large archive log gap between PRIMARY and STANDBY

STOP EBS FRONT END

Manual Switchover

Original Primary and Standby

select DB_UNIQUE_NAME,Database_role,open_mode,switchover_status from v$database;

Original Primary – TEST – SWITCHOVER_STATUS is TO STANDBY

STANDBY – TESTCOLA – SWITCHOVER_STATUS is NOT ALLOWED

Convert Primary to Standby

SQL> alter database commit to switchover to physical standby with session shutdown; (PRIMARY)

SQL> alter database commit to switchover to primary with session shutdown; (STANDBY)

set linesize 200
col DB_UNIQUE_NAME form a30
col DATABASE_ROLE for a20
col OPEN_MODE for a30
col SWITCHOVER_STATU for a30

select DB_UNIQUE_NAME,Database_role,open_mode,switchover_status from v$database;

Original Standby is now Primary

TESTCOLA – Database Role is Primary, OOPEN_MODE is mounted and SWITCHOVER_STAUTS is NOT ALLOWED

Convert Original Primary(TEST- zsc-oradev-01)  to Standby

startup nomount

alter database mount standby database;

alter database recover managed standby database disconnect from session;

alter database recover managed standby database cancel;

alter database open read only;

ALTER DATABASE RECOVER MANAGED STANDBY DATABASE DISCONNECT FROM SESSION; (Real-time apply)

Once media recovery process is finish in (TESTCOLA -standby-host)

select process,status,sequence# from v$managed_standby;

TESTCOLA@standby-host should not have any more MRP0 process running

alter database open;

Single Instance to RAC-One Conversion

since newly minted PRIMARY on standby-host is single instance, convert it to RAC-One (RAC)

EXEC DBMS_STATS.gather_system_stats;
alter system set cluster_database=true scope=spfile;
create undo tablespace APPS_UNDOTS2;
alter system set undo_tablespace='APPS_UNDOTS1' sid='TESTCOLA_1' scope=spfile;
alter system set undo_tablespace='APPS_UNDOTS2' sid='TESTCOLA_2' scope=spfile;
alter system set thread=1 sid='TESTCOLA_1' scope=spfile;
alter system set thread=2 sid='TESTCOLA_2' scope=spfile;

Create Online logs for Thread 2

set echo off
set feedback off
set linesize 120
set pagesize 35
set trim on
set trims on
set lines 120
col group# format 999
col thread# format 999
col member format a60 wrap
col status format a10
col archived format a10
col fsize format 999 heading "Size (MB)"

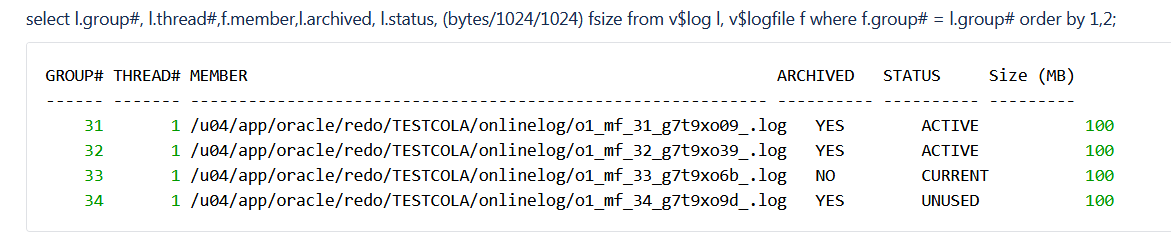

select l.group#, l.thread#,f.member,l.archived, l.status, (bytes/1024/1024) fsize from v$log l, v$logfile f where f.group# = l.group# order by 1,2;

alter database add logfile thread 2 group 35;
alter database add logfile thread 2 group 36;
alter database add logfile thread 2 group 37;
alter database add logfile thread 2 group 38;
alter database enable thread 2;

shutdown single instance TESTCOLA

export ORACLE_SID=TESTCOLA_1

ENSURE $TNS_ADMIN is point to $ORACLE_HOME/network/admin/TESTCOLA_1_standby-host and TESTCOLA_LOCAL alias exists inside tnsnames.ora

TESTCOLA_LOCAL=(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=standby-host-0)(PORT=1531)))

Only for RAC-ONE

STOP TESTCOLA_1 on node 0

OTHER NODE aka node 1(standby-host-1)

add the following entry to /etc/oratab

TESTCOLA:/u01/app/oracle/product/12.1.0.2/dbhome_24:N

export ORACLE_SID=TESTCOLA_2

mkdir -p /u01/app/oracle/product/12.1.0.2/dbhome_24/network/admin/TESTCOLA_2_standby-host-1
export TNS_ADMIN=/u01/app/oracle/product/12.1.0.2/dbhome_24/network/admin/TESTCOLA_2_standby-host-1

cd $TNS_ADMIN

easiest way is to scp $TNS_ADMIN directory from standby-host-0 to standby-host-1 and change the host-name in tnsnames.ora and listener.ora

lsnrctl start TESTCOLA

mkdir -p /u01/app/oracle/admin/TESTCOLA/adump

sqlplus / as sysdba

startup (sanity check) (show parameter instance)

EBS configuration (database tier)

EBS Front-End

cp /u02/apptest/fs1/inst/apps/TEST_frontend-host/appl/admin/TEST_frontend-host.xml /u02/apptest/fs1/inst/apps/TEST_frontend-host/appl/admin/TEST_frontend-host.xml.preODA (backup APPS CONTEXT_FILE)

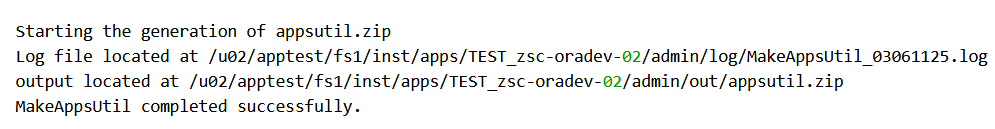

perl /u02/apptest/fs1/EBSapps/appl/ad/12.0.0/bin/admkappsutil.pl

Node 0 (TESTCOLA_1 is running)
sqlplus / as sysdba

startup

scp appsutil.zip

scp oratest@frontend-host:/u02/apptest/fs1/inst/apps/TEST_frontend-host/admin/out/appsutil.zip /u01/app/oracle/product/12.1.0.2/dbhome_24/.

Node 0 (standby-host-0)

vi $TNS_ADMIN/tnsnames.ora

TEST =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = original-primary-host)(PORT = 1531))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SID = TEST)
    )
  )
TESTCOLA_LOCAL=
        (DESCRIPTION=
                (ADDRESS=(PROTOCOL=tcp)(HOST=standby-host-0)(PORT=1531))
        )
TESTCOLA_1_LOCAL=
        (DESCRIPTION=
                (ADDRESS=(PROTOCOL=tcp)(HOST=standby-host-0)(PORT=1531))
        )
TESTCOLA_REMOTE=
        (DESCRIPTION=
            (ADDRESS_LIST=
                (ADDRESS=(PROTOCOL=tcp)(HOST=scan-ip-address1)(PORT=1521))
                (ADDRESS=(PROTOCOL=tcp)(HOST=scan-ip-address2)(PORT=1521))
            )
        )
TESTCOLA =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = standby-host-0)(PORT = 1531))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SID = TESTCOLA)
    )
  )

alter system set remote_listener='TESTCOLA_REMOTE' scope=both sid='*';
alter system set local_listener='TESTCOLA_1_LOCAL' sid='TESTCOLA_1' scope=both;

At this point TESTCOLA listener and LISTENER_SCAN1/2 should have all the database services registered.

cd $ORACLE_HOME
unzip -o appsutil.zip
cd $ORACLE_HOME/appsutil
sqlplus apps
exec fnd_conc_clone.setup_clean;  (truncate applsys.FND_OAM_CONTEXT_FILES)

Ensure jre directory exists under $ORACLE_HOME/appsutil

if not, tar -xvzf jre-<version>-linux-x64.tar.gz

and create symbolic link ln -s jre-<version>-linux-x64.tar.gz/ jre

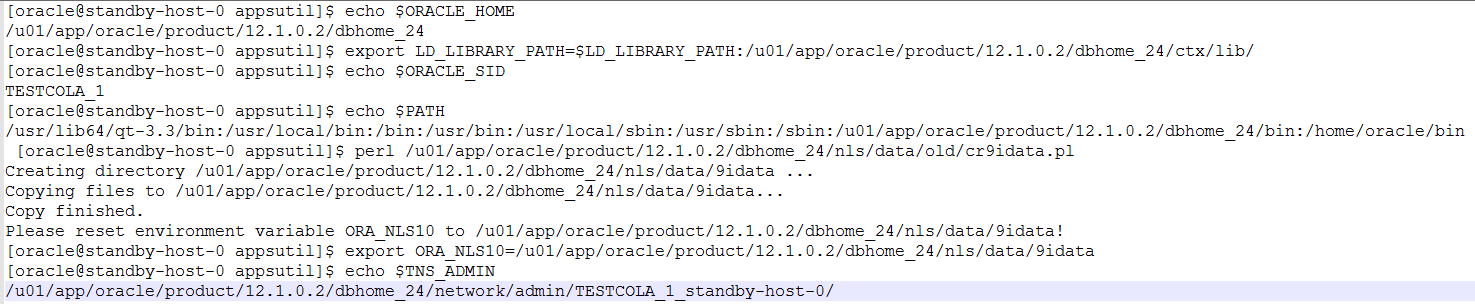

Ensure Following environment variables are set

cd $TNS_ADMIN
[oracle@standby-host-0 TESTCOLA_1_standby-host-0]$ cp listener.ora listener.ora.bak
lsnrctl stop TESTCOLA
vi listener.ora (SID: add _1)

lsnrctl start TESTCOLA

cd /u01/app/oracle/product/12.1.0.2/dbhome_24/appsutil/bin

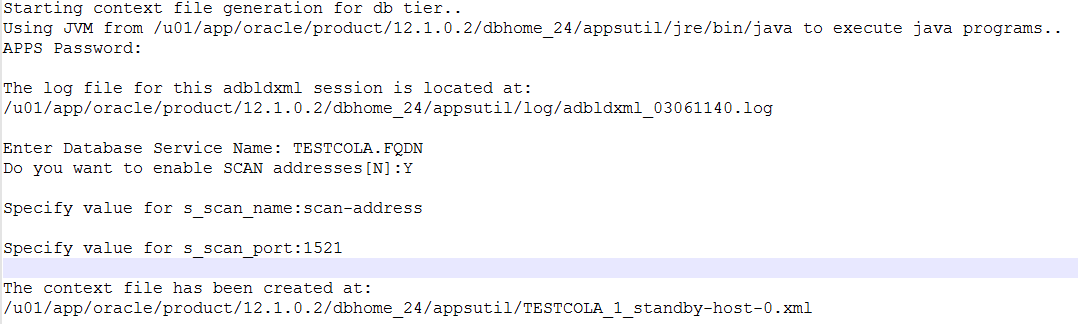

perl /u01/app/oracle/product/12.1.0.2/dbhome_24/appsutil/bin/adbldxml.pl

vi $TNS_ADMIN/sqlnet.ora (add the following)

vi /u01/app/oracle/product/12.1.0.2/dbhome_24/appsutil/TESTCOLA_1_standby-host-0.xml

Run adconfig.sh

[oracle@standby-host-0 bin]$ /u01/app/oracle/product/12.1.0.2/dbhome_24/appsutil/bin/adconfig.sh
Enter the full path to the Context file: /u01/app/oracle/product/12.1.0.2/dbhome_24/appsutil/TESTCOLA_1_standby-host-0.xml

EVEN though initial adconfig run successfully, $CONTEXT_FILE parameter s_update_scan is now set to “FALSE”.
Result of this, remote_listener prameter under $TNS_ADMIN get override to standby-host-0-vip instead of two scan ip addresses

vi /u01/app/oracle/product/12.1.0.2/dbhome_24/appsutil/TESTCOLA_1_standby-host-0.xml

<scanUpdateFlag oa_var="s_update_scan">TRUE</scanUpdateFlag>
If the database services are still registered with scan listeners, change the tnsnames.ora as below and rerun adconfig
TEST_REMOTE=
        (DESCRIPTION=
            (ADDRESS_LIST=
                (ADDRESS=(PROTOCOL=tcp)(HOST=scan-ip-address-1)(PORT=1521))
                (ADDRESS=(PROTOCOL=tcp)(HOST=scan-ip-address-2)(PORT=1521))
            )
        )

Node 1 EBS listener Configuration

node 1 EBS listener Configuration will be the same as Node 0, the only changes should be made are references to standby-host-0 to standby host-1 and TESTCOLA_2_LOCAL alias under tnsnames.ora

alter system set local_listener='TESTCOLA_2_LOCAL' sid='TESTCOLA_2' scope=both;

Node 0  (Register database listener with clusterware)

[oracle@standby-host-0 TEST_1_standby-host-0]$ srvctl add listener -l TESTCOLA_LISTENER -o /u01/app/oracle/product/12.1.0.2/dbhome_24 -p 1531
[oracle@standby-host-0 TEST_1_standby-host-0]$ srvctl setenv listener -l TESTCOLA_LISTENER -T TNS_ADMIN=/u01/app/oracle/product/12.1.0.2/dbhome_24/network/admin

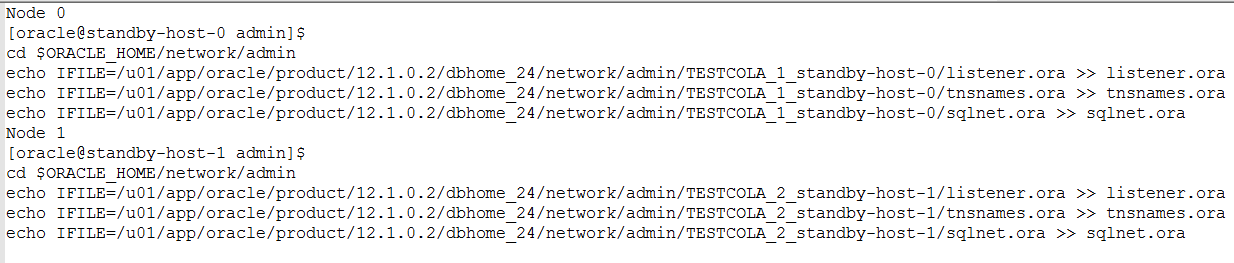

create following IFILEs under $ORACLE_HOME/network/admin  (Both nodes).

create following IFILEs under $ORACLE_HOME/network/admin

Sanity Check

EBS configuration (Application tier)

Edit $CONTEXT_FILE

<jdbc_url oa_var="s_apps_jdbc_connect_descriptor">jdbc:oracle:thin:@(DESCRIPTION=(ADDRESS_LIST=(LOAD_BALANCE=YES)(FAILOVER=YES)(ADDRESS=(PROTOCOL=tcp)(HOST=scan-address-name)(PORT=1521)))(CONNECT_DATA=(SERVICE_NAME=TESTCOLA.zeusinc.com)))</jdbc_url>

<patch_jdbc_url oa_var="s_apps_jdbc_patch_connect_descriptor">jdbc:oracle:thin:@(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=scan-address-name)(PORT=1521))(CONNECT_DATA=(SERVICE_NAME=TESTCOLA_ebs_patch.zeusinc.com)(INSTANCE_NAME=TESTCOLA_1)))</patch_jdbc_url>

<dbhost oa_var="s_dbhost">scan-address-name</dbhost>

<cmanhost oa_var="s_cmanhost">scan-address-name</cmanhost>

<dbport oa_var="s_dbport" oa_type="EXT_PORT" base="1521" step="1" range="-1" label="Database Port">1521</dbport>

<cmanport oa_var="s_cmanport" label="Oracle Connection Manager Port">1521</cmanport>

<TWO_TASK oa_var="s_tools_twotask" osd="unix">TESTCOLA</TWO_TASK>

<CP_TWOTASK oa_var="s_cp_twotask">TESTCOLA</CP_TWOTASK>

<TWO_TASK oa_var="s_weboh_twotask" osd="unix">TESTCOLA</TWO_TASK>

Front End tnsnames.ora

Change tnslias for current $TWO_TASK parameter so that front-end host can connect to TESTCOLA_1 database on standby-host-0

TESTCOLA=
        (DESCRIPTION=
                (ADDRESS=(PROTOCOL=tcp)(HOST=standby-host-0-vip.zeusinc.com)(PORT=1531))
            (CONNECT_DATA=
                (SERVICE_NAME=TESTCOLA.FQDN)
                (INSTANCE_NAME=TESTCOLA_1)
            )
        )

echo $TWO_TASK (this should point to TESTCOLA)

sqlplus apps (sanity check)

run adautocfg.sh

If adautocfg.sh finished successfully, adstrtal.sh

If adautocfg.sh finished successfully, adstrtal.sh. Front-end $TNS_ADMIN/tnsnames.ora should have new scan-ip-addresses for some of the alias that EBS uses to connect to the database

EBS patch file config

Source patch file system then follow same steps as Run file configuration

adautocfg.sh

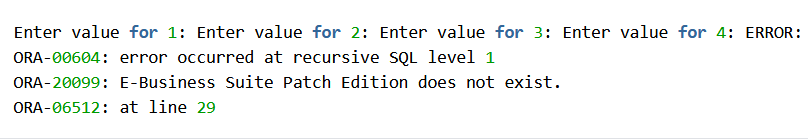

Safely ignore Above autocfg error.

END
